Reading the kitchen floor plan

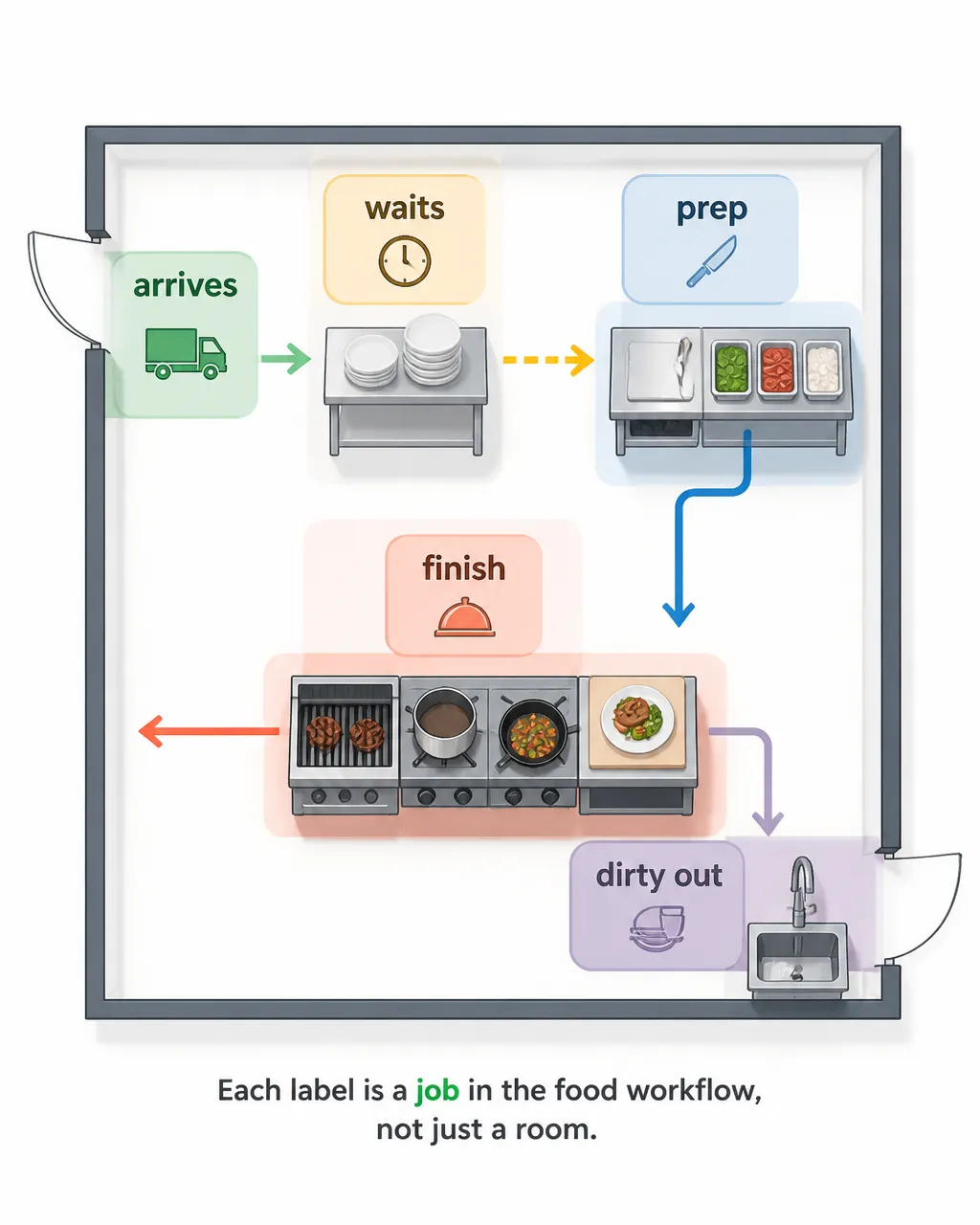

A tight, simple professional kitchen floor plan with arrows showing work zones labeled “arrives,” “waits,” “prep,” “finish,” and “dirty out,” emphasizing that each room label represents a job in the food workflow, not just a room.

The floor plan shows work

A professional kitchen floor plan is not just a drawing of rooms. It is a map of work: where food arrives, where it waits, where cooks prepare it, where orders are finished, and where dirty items leave the flow.
